Wi-Fi Temperature Monitor

   Technical Overview

General Description

The Wi-Fi Temperature Monitor:

  • Uses a 1-Wire Water resistant Digital Thermometer to measure temperature
  • Needs a local Wi-Fi connection to send data to the Cloud
  • Plug and Play device

Features

  • Measures temperatures from –55°C to +125°C (–67°F to +257°F)
  • ±0.5°C (±0.9°F) accuracy from –10°C to +85°C (14°F to +185°F)
  • User definable temperature output in degrees Celsius or Fahrenheit
  • User definable precision to the degree, 10th or 100th of a degree
  • User can calibrate the monitor
  • User definable update schedule (default is 1 hour)
  • User definable change in temperature causes an immediate data transmission (default is 2 degrees F)
  • 4 levels of notifications
  • SMS text and/or email notifications
  • Notifies a single person or group of several people for each level of notification
  • Graph of last 60 hours for basic monitoring service
  • View dashboard from PC or Apple Computers, Tablets or any Apple or Android mobile device

Technical Data

  • Maximum power consumption of 300mA
  • Supports TCP/IP, the full 802.11 b/g/n/e/i WLAN MAC protocol and Wi-Fi Direct specification
  • Supports WPA/WPA2 PSK, and WPS
  • 802.11n support (2.4GHz / 5GHz)
  • Internal antenna
  • Device Range: 250 - 300 ft
  • Storage temperature range: -55°C - +125°C (-67°F - +257°F)
  • Operating temperature range: -20°C - +100°C (-4°F - +212°F)

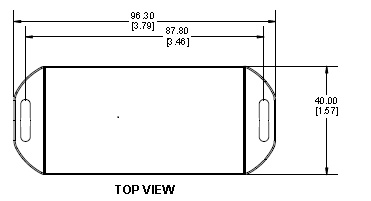

  • Total dimension: 96 * 40 * 20 mm (3.79 * 1.57 *.79 inches)
  • Operates with 4 to 20v DC or 90 to 240vAC

Options

  • Waterproof Digital Thermometer is also available
